Threaded stem Rubber Coated Pot Magnet
- Regular price
- $45.00 USD
- Regular price
-
- Sale price
- $45.00 USD
- Unit price
- per
Couldn't load pickup availability
Share
Threaded Stem Rubber Coated Pot Magnet
Product info
|

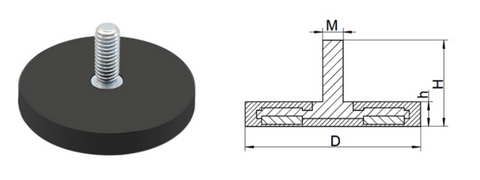

Model |
D (mm) |
h (mm) |
H (mm) |
M |
Weight (g) |
Breakaway (kg) |
|
HNCH-22 |
22 |
6 |
12.5 |
M3-M6 |
12 |
3.5 |
|
HNCH-43 |
43 |
6 |
21 |
M3-M6 |
34 |
12 |
|
HNCH-66 |
66 |
8.5 |
23.5 |
M4-M10 |
100 |
22 |
|
HNCH-88 |
88 |
8.5 |
23.5 |
M5-M12 |
182 |
50 |
1. Internal thread
2. Screw socket
3. Threaded stem
Advantage
1. The rubber coated magnet can be applied in different temperature and pull force with diverse type of magnet.
2. The particular designs of magnetic circuit will ensure rubber-coated magnet has much higher pull force.
3. The rubber coating is not only protecting rubber-coated magnet against corrosion, but also keeps the working surface free of damage.
4. The rubber coating would give extremely fine sheer force to rubber-coated magnet.
5. The rubber-coated magnet accommodates a series of standard fasteners and attachments.
Application
