1 2

Screw socket Rubber Coated Pot Magnet

$45.00 USD
$45.00 USD
Size

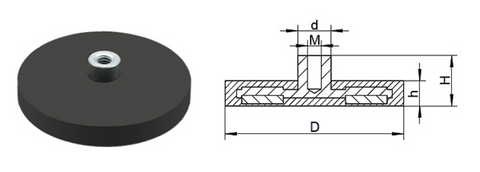

Screw Socket Rubber Coated Pot Magnet

Product info

Model

D

(mm)

d

(mm)

h

(mm)

H

(mm)

M

Weight

(g)

Breakaway

(kg)

HNDH-22

22

6

6

11.5

M3-M6

11

3.5

HNDH-43

43

8

6

10.5

M3-M6

34

12

HNDH-66

66

12

8.5

14

M4-M10

100

22

HNDH-88

88

15

8.5

14

M5-M12

182

50
Types of Rubber Coated Magnet

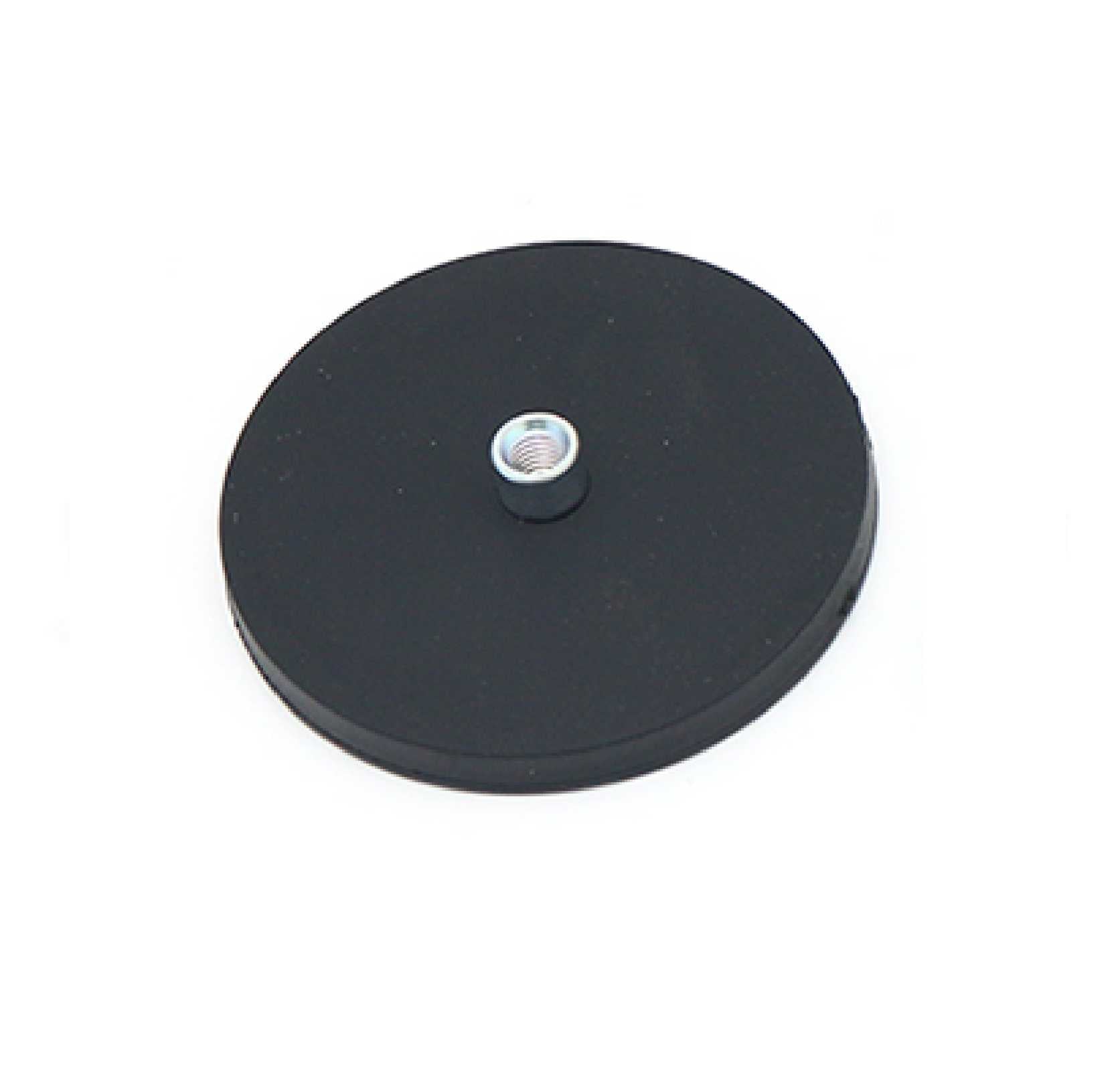

1. Internal thread

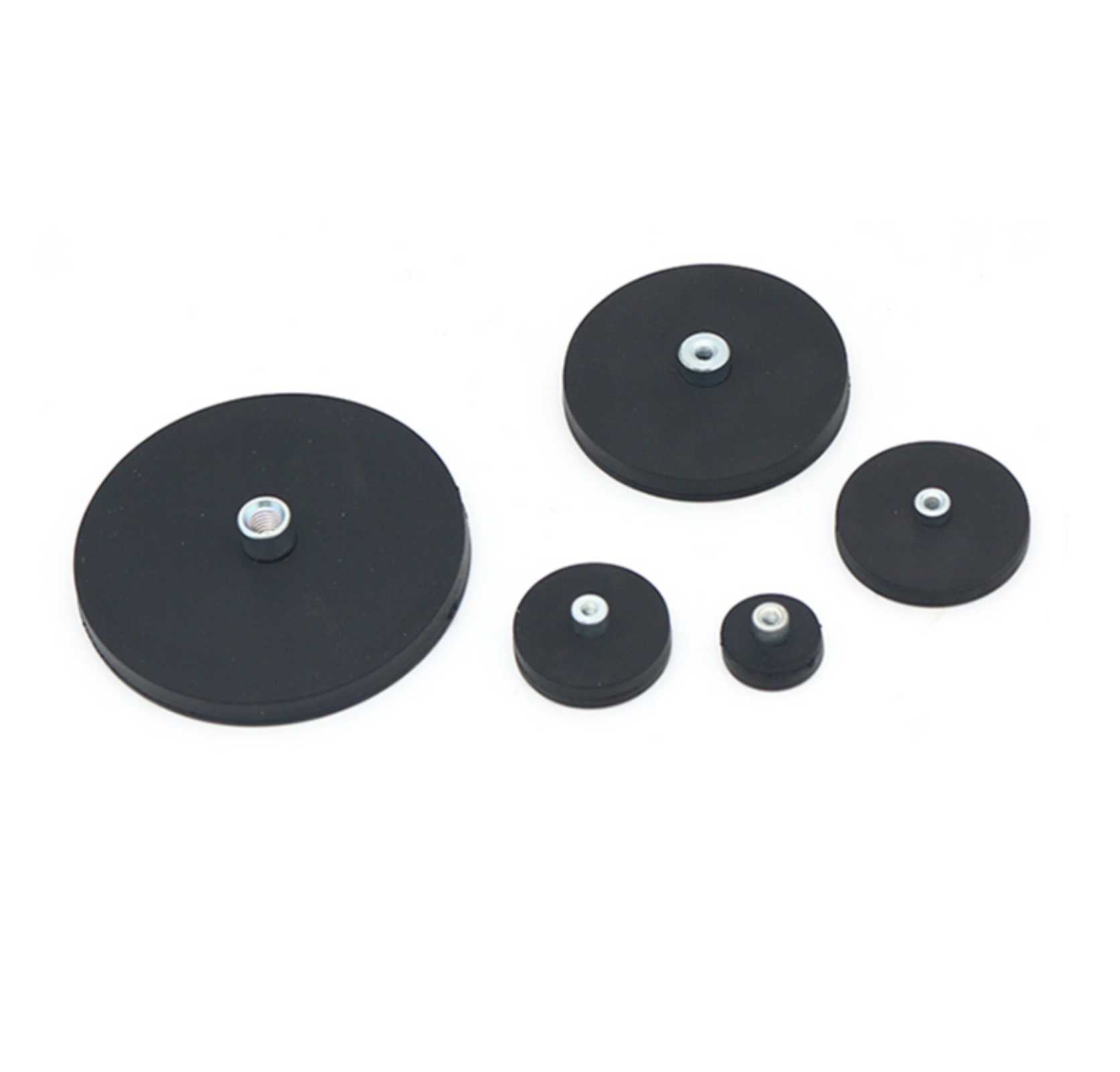

2. Screw socket
3. Threaded stem

Advantage
1. The rubber coated magnet can be applied in different temperature and pull force with diverse type of magnet.
2. The particular designs of magnetic circuit will ensure rubber-coated magnet has much higher pull force.
3. The rubber coating is not only protecting rubber-coated magnet against corrosion, but also keeps the working surface free of damage.
4. The rubber coating would give extremely fine sheer force to rubber-coated magnet.
5. The rubber-coated magnet accommodates a series of standard fasteners and attachments.

Application
