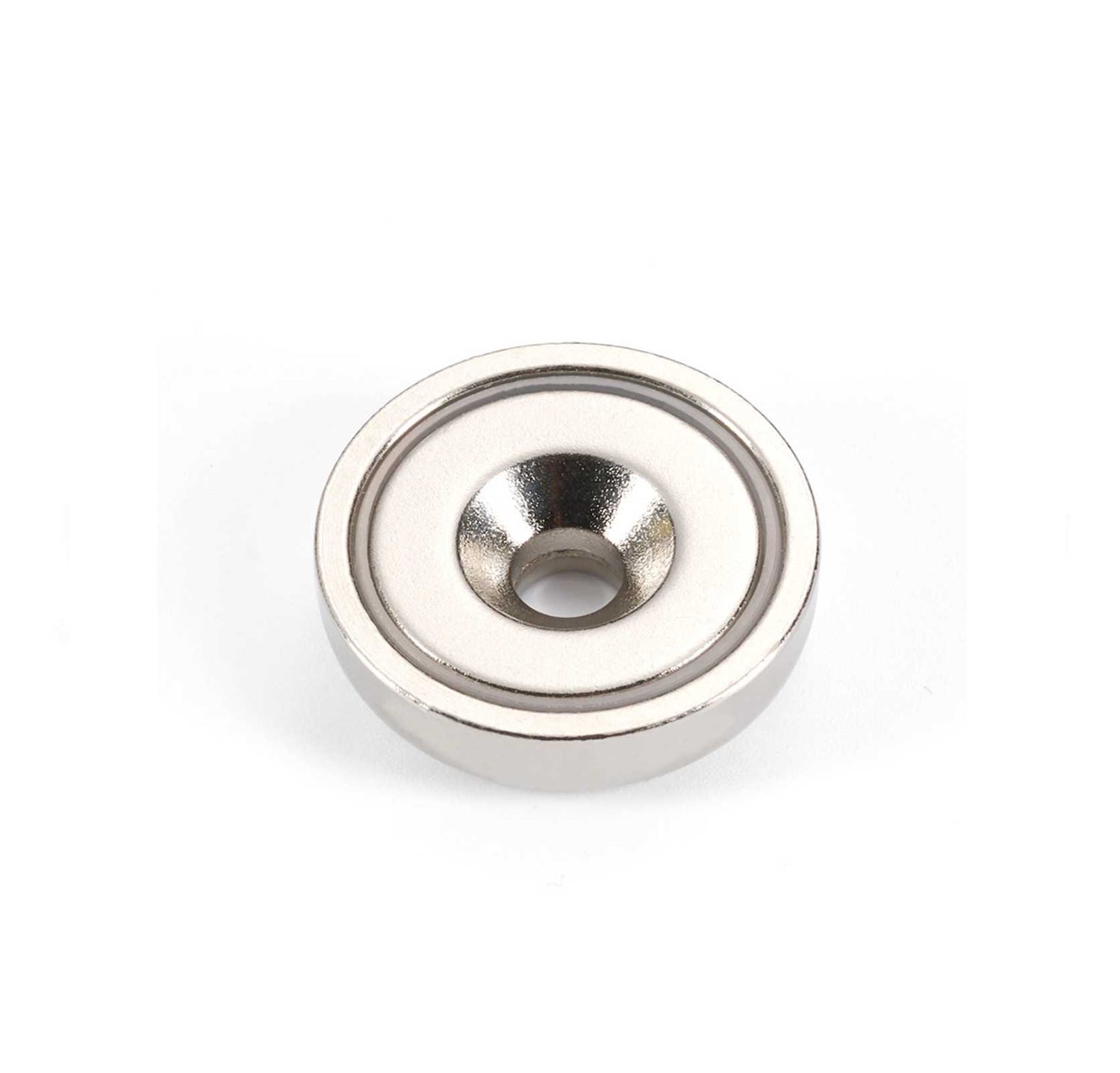

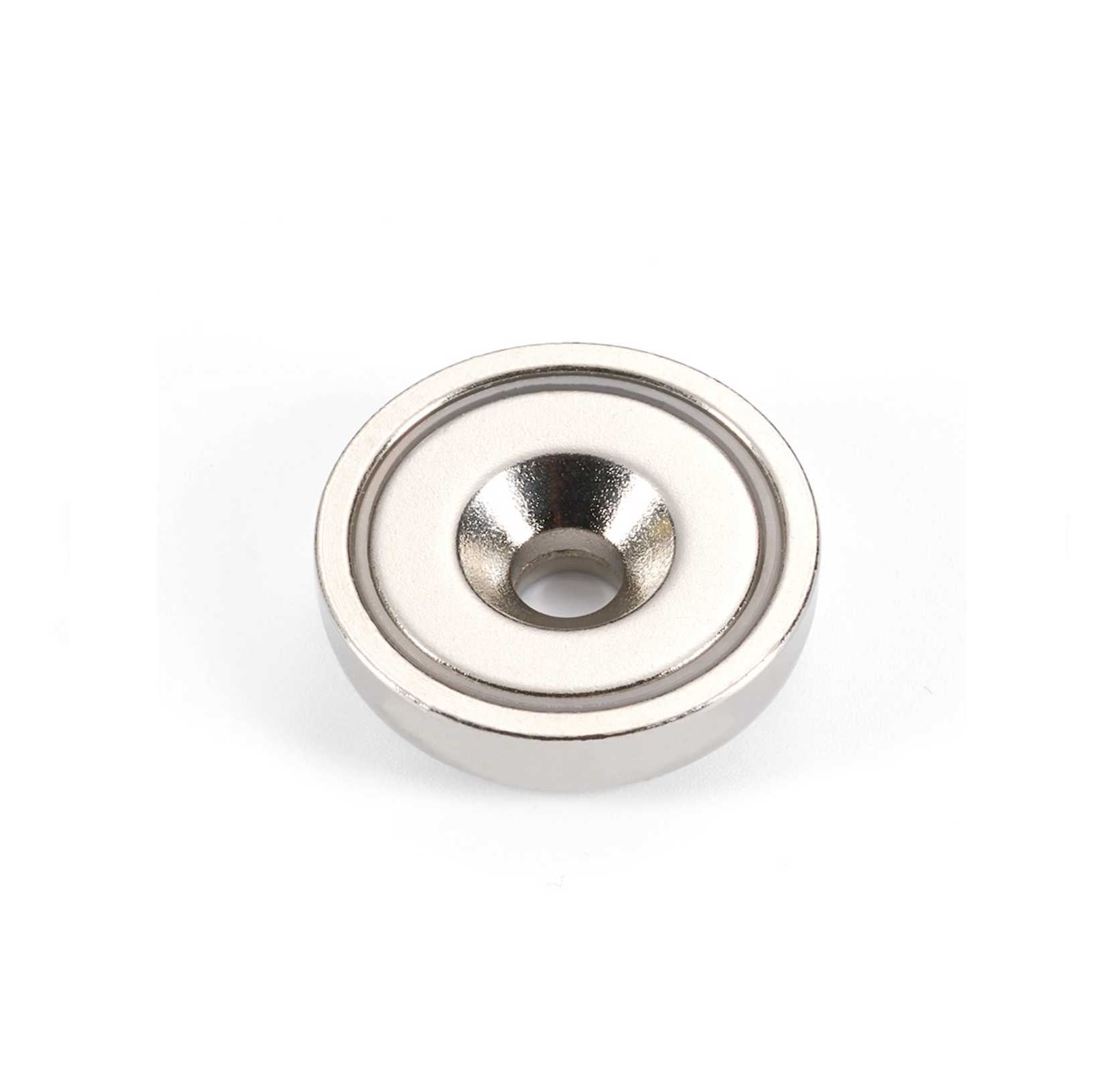

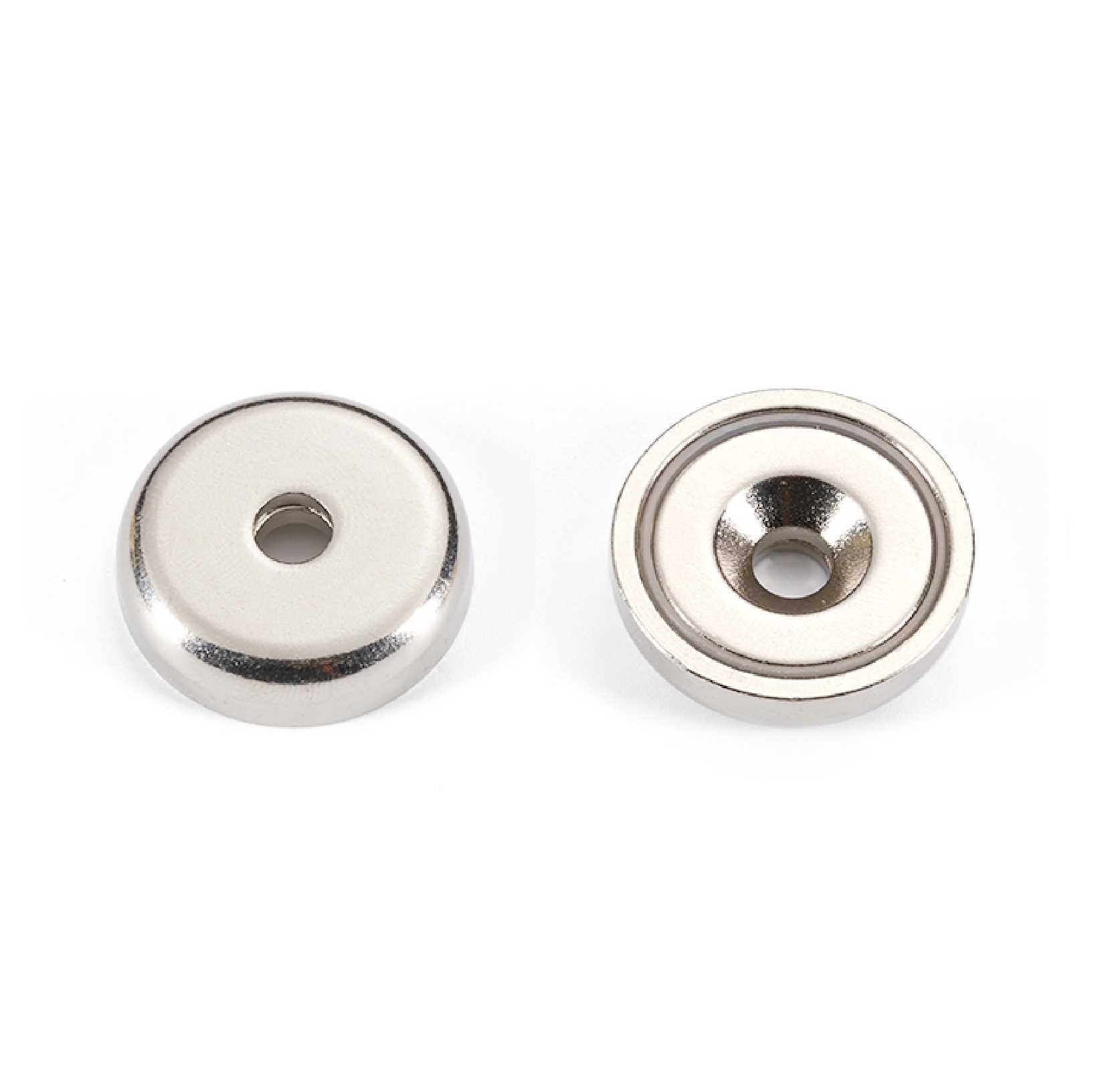

Countersunk Pot Magnets
Product info
|

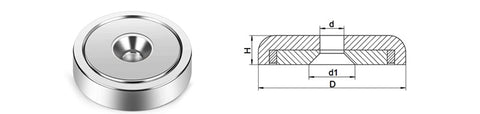

Model |
D (mm) |
d (mm) |
d1 (mm) |
H (mm) |
Weight (g) |
Breakaway (kg) |
|
HNA10 |
10 |
3.5 |
6.5 |
4.5 |
3 |
1 |
|
HNA12 |
12 |
3.5 |
6.5 |
4.5 |
4 |
1.5 |
|
HNA16 |
16 |
3.5 |
6.5 |
5 |
7 |
6 |
|
HNA20 |
20 |
4.5 |
8.5 |
7 |
15 |
11 |
|
HNA25 |
25 |
5.5 |
10.6 |
8 |
24 |
22 |
|
HNA32 |
32 |
5.5 |
10.6 |
8 |
39 |
32 |
|
HNA36 |
36 |
6.5 |
11.3 |
8 |
50 |
43 |
|
HNA40 |
40 |
6.5 |
11.3 |
8.6 |
70 |
55 |
|
HNA42 |
42 |
6.5 |
11.3 |
8.6 |
77 |
65 |
|
YNA48 |
48 |
8.5 |
15.5 |
11 |
120 |
75 |
|
YNA55 |
55 |
8.5 |
15.5 |
12 |
192 |
95 |
|
YNA60 |
60 |
8.5 |
15.5 |
15 |
243 |
160 |
|
YNA70 |
70 |
10.5 |
16.5 |
17 |
440 |
200 |
|
YNA75 |
75 |
10.5 |
16.5 |
18 |
480 |
250 |
|
YNA80 |
80 |
10.5 |
16.5 |
18 |
655 |
280 |
|
YNA90 |
90 |
10.5 |
16.5 |
18 |
820 |
360 |
|
YNA120 |
120 |
12.5 |
22.5 |
18 |
1420 |
480 |
Application
1. Easy to mount with a standard flat head screw to hold iron articles on any surface of workshops, homes as well as in industry and craft.
2. Mounted on articles as connections. Just like door stoppers on the wall or on the floor.
